Please do NOT call or E-mail unless you have read this entire Web pageE-mail address: Mike@telechron.us (Preferred contact method)
I'm currently out of the type "Z" E. Ingraham clock motor, which is the top motor in the picture below, but can still rebuild your old one if it passes both the heat test and the resistance (Ohm) test mentioned below.
I still have some of the second type.
E. Ingraham Clock Motors

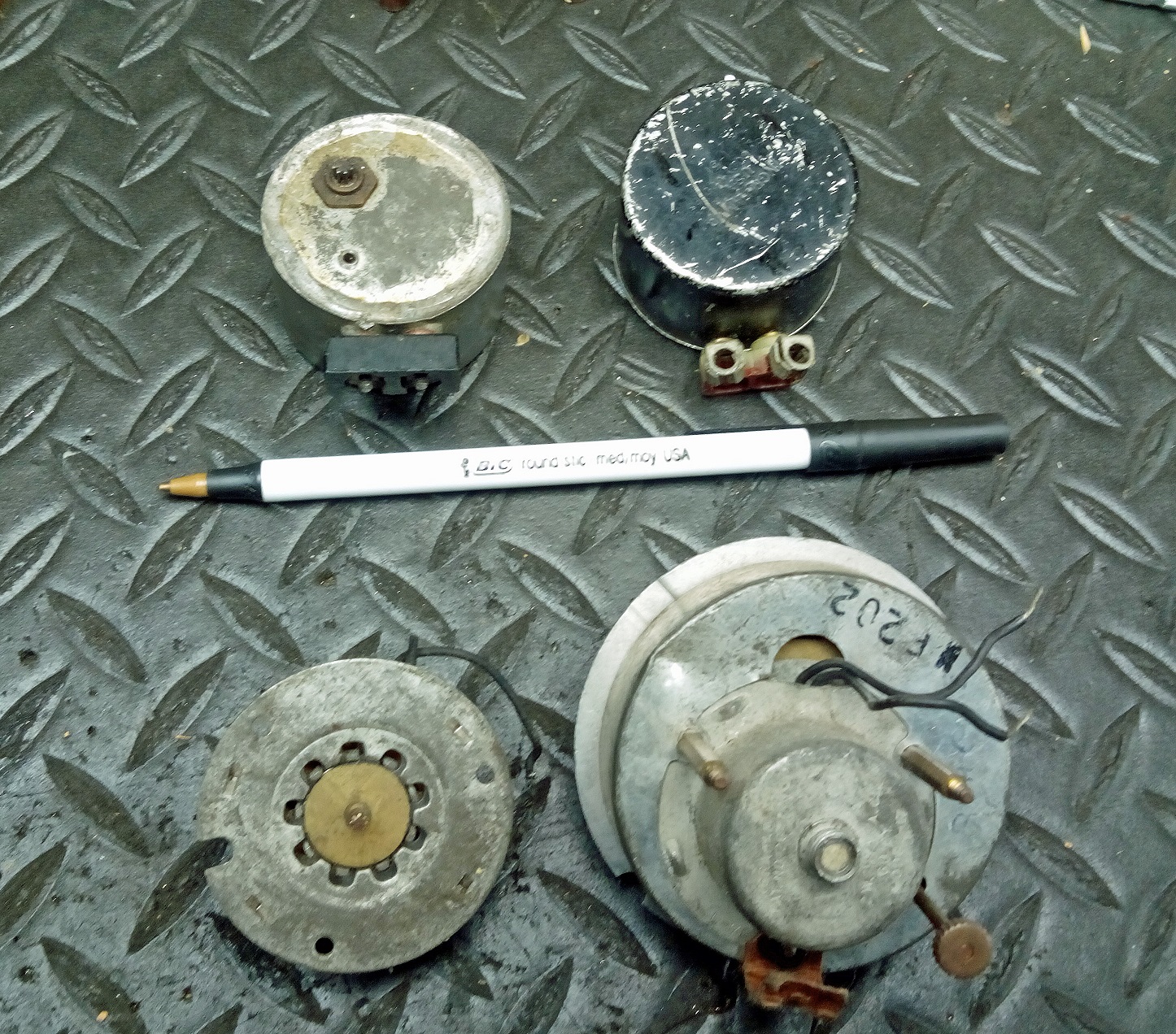

The top motor in the picture is the "Z" motor and the one below the pen is the more common E. Ingraham motor. My business is rebuilding your original motor, when possible. E. Ingraham made motors for various clock companies. There are basically two types of Ingraham's and I work on both and have some if yours does not pass the continuity test (more on that below). All of these motors cost $150.00 plus $20.00 priority mail (Canada is $45.00) and has a 2-year warranty, which brings your total cost to $170.00. The internal coil does short out over time and even if your motor passes the heat test, I cannot be positive that your coil has the strength to do its job. Therefore with any original motor I can only offer 1/2 ($75.00) refund should it fail during the 2-year warranty. If I have another in stock, then I will offer to try another but that would be the end of the warranty because I cannot offer a warranty in perpetude on these old motors. I must have the old motor. If your motor is dead then at least I'll have it to match it to the one I'll use from inventory exactly. Using one from inventory adds $150.00 to the total and it to would have to be rebuild, so the time frames would still be the same. I do not know of any substitute nor do I have specific any information about RPM or the direction it is suppose to turn and if I do it would be further on in the Web page. My turnaround is 4 to 6 weeks for motor service, 6 to 8 months if the clock is sent with the motor, or if the movement is overhauled. I no longer offer expedited service. If you want to send in the clock for motor or rotor replacement, please be advised that your costs will increase by $85.00 with everything else staying the same. The increase covers the increase in return shipping and insurance and includes my labor charge of $50.00 for the replacement service. I can ship at that price for clocks up to 22" long ($250.00 total). Overhaul E. Ingraham clock motor $150.00 Labor and cleaning of movement $50.00 Return shipping and handling $50.00 Total $250.00 The above assumes you ship the entire clock and does not include a warranty on the movement (mechanism) because that may need to be overhauled as well. Most times the movement does not need to be overhauled but if it did then you're looking at an additional $300.00 for a possible total of $550.00, then the movement would have the same 2-year warranty as the motor. I'll not ship the motor until I received payment. I accept personal checks, certified checks, or company checks for payment but repeat customers may use personal checks. Normally shipping takes place one week or so after I receive payment and thanks! If you use a personal check then please allow 10 days before shipping to allow the check to clear. I must have the old motor. If your motor is dead then at least I'll have it to match it to the one I'll use from inventory exactly. Using one from inventory adds $150.00 to the total and it to would have to be rebuild, so the time frames would still be the same. Please be aware that my inventory now consists of used motors and these motors must be heat tested and then rebuild before being shipped. This also means that there is the potential that nothing passes and then I'll not be able to help you. If that happens, then I return your old motor at no charge. So please test the motor's coil for continuity and the motor itself for excess heat, which is explained below.
One thing you can do before you send in the motor is to take a Multimeter or Volt/Ohm meter, these are less than $20.00 at any hardware store, and with no current on the motor, set the meter to Ohms and touch the two leads to the end of the wires or the posts where the wires connect and see if you get a reading. This is the continuity test. Just about any reading is a good one. But if you get no reading what-so-ever then the motor's coil is dead and I cannot repair your motor. You should still send it in because I may have an identical one in inventory that I can rebuild and this adds $100.00 for a total of $250.00 plus shipping. Please don't assume I have an identical motor in inventory. It is extremely important you test the coil before you send the motor and please contact me before you send a motor with a dead coil. If I do use a motor from inventory, that increases your costs by $100.00 but I no longer have any of the black motors, which are on the bottom of the picture above. If you get a reading, then plug it in for at least 24 hours and see how hot the motor gets. If you can hold it with your fingers for 10 seconds without being burned then the coil would be good enough to rebuilt the motor around it. If you can't then it's not rebuildable because there are too many shorts in the coil and the motor would not have enough torque to last or perhaps not run at all. You can always have me clean and lubricate a motor that is running too hot. The "catch" is that I will not warranty nor guarantee it will work more that a few minutes and the $165.00 will NOT be applicable to any future work even if it is to replace that very same now non-working motor. Some have taken this chance and it has worked out but that is a chance that you will be taking if you go that route. If you don't want to test it with current, then I'll be happy to and do that right off when the motor is received, so you'll know what we're dealing with.
For return shipping I use USPS for all shipping. If you want to use another carrier then you will have to arrange everything for shipping, meaning I hand the box to the driver, get a receipt and nothing else.
If, for any reason, I cannot rebuild your motor or I cannot salvage an exact substitute, then I'll return your motor at no charge what-so-ever.
I would like payment by money order, certified check, personal check, business check, or through Pay Pal or Square, which is the only way I take credit cards. I do prefer a check over Pay Pal or Square because Pay Pal and Square take 3%. I only take credit cards if you are in the USA or Canada. The 3% is added to the total bill if you use a credit card. With either Pay Pal or Square, I will send an invoice to your E-mail address. Here you are dealing directly with either service and not me. You do not have to be a member of Pay Pal or Square in order to issue a payment but the 3% will be added to your total bill. All of the added fees are exactly what either service charges me for taking your credit card.
