Mike's Telechron Clock Clinic's

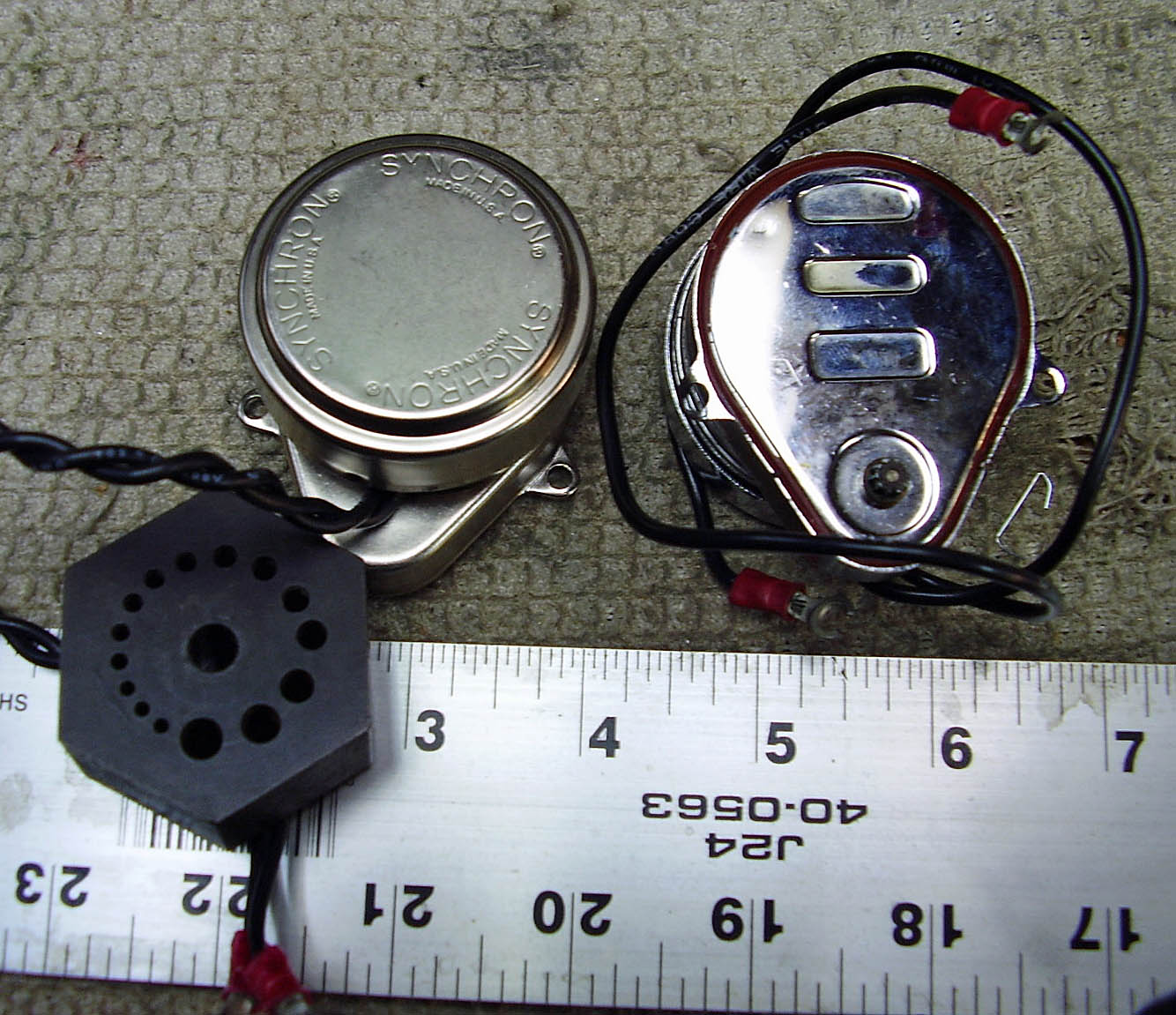

Synchron 8 RPH #31651L-1WL-24, & 60 RPM # GI13RC-47 for Chart Recorders and Clock Motor.

Copyright © 1995-2017 Michael P. Murray & Mike's Clock Clinic Mike's Clock Clinic Memberships: NAWCC 1600 Maryland Avenue Myrtle Point, OR 97458-1508 Phone: 541-559-1090, or 877-286-6762 E-mail address: Mike@telechron.us (Preferred contact method)
Synchron 8 RPH #31651L-1WL-24, & 60 RPM # GI13RC-47 for Chart Recorders and Clock Motor



My business is rebuilding your original motor, when possible. Synchron motors turning at either 8 RPH or 60 RPM are used in Chart Recorders and cost $250.00 plus $15.00 priority mail (Canada is $40.00) and have a 2-year warranty, which brings your total cost to $265.00. I must have the old motor. If your motor is dead then at least I'll have it to match it to the one I'll use from inventory exactly. Using one from inventory adds $100.00 to the total and it to would have to be rebuild, so the time frames would still be the same. If you want to send in the chart recorder for motor replacement, please be advised that shipping will jump from $15.00 to $100.00 with everything else staying the same.   The increase covers return shipping and insurance and includes my labor charge of $50.00 for the replacement ($350.00 total).
One thing you can do before you send in the motor is to take a Multimeter or Volt/Ohm meter, these are less than $10.00 at any hardware store, and with no current on the motor, set the meter to Ohms and touch the two leads to the end of the wires or the posts where the wires connect and see if you get a reading. Just about any reading is a good one. But if you get no reading what-so-ever then the motor's coil is dead and I cannot repair your motor. You should still send it in because I may have an identical one in inventory that I can rebuild. Please don't assume I have an identical motor in inventory. It is extremely important you test the coil before you send the motor and please contact me before you send a motor with a dead coil.
If you test the motor and it so hot that 5 seconds would burn your finger then I may be able to switch out the internal coil with a new on for a total cost of $350.00 plus shipping. The same is true if the coil is dead. In other words plus $100.00. My turnaround is 2 to 3 months and expedited service adds $100.00 and if you choose expedite and I cannot return a working motor then the $100.00 is still due. If after the normal waiting period the motor still is not satisfactory then it is returned at no charge. Expedited service takes about 2 weeks. I'll not ship the rotor/motor until I received payment.  I ONLY accept money orders, certified checks, or company checks for payment but repeat customers may use personal checks.  Normally shipping takes place one week or so after I receive payment and thanks !
Below are the NOS (New Old Stock) motors I have for sale at the same $250.00 each.

     # in Stock

    Specific Type (Synchron)

Pinion rotation
  3   8 RPH #31651L-1WL-24   8 RPH
  2   60 RPM # GI13RC-47   60 RPM (3600 RPH)

For return shipping I use USPS for all shipping. If you want to use another carrier then you will have to arrange everything for shipping, meaning I hand the box to the driver, get a receipt and nothing else.

I would like payment by money order, certified check, personal check, business check, or through Pay Pal or Square, which is the only way I take credit cards. I do prefer a check over Pay Pal or Square because Pay Pal and Square take 3%. I only take credit cards if you are in the USA or Canada. The 3% is added to the total bill if you use a credit card. With Pay Pal you can pay me directly using "friends and family" where you absorb all fees and I'm paid the full amount. There would be nothing added amount to the final fill if you absorb all fees. Here you log on to Pay Pal and send me the full amount of my bill, so there is no E-voice coming from me with this method and you will be charged all Pay Pal fees on top of my final bill. With either Pay Pal or Square, I will send an invoice to your E-mail address. Here you are dealing directly with either service and not me. You do have to be a member of Pay Pal in order to issue a payment but you may use Square without any membership or additional Square fees but the 3% will be added to your total bill as with Pay Pal. With Square, I can also take the credit card information which includes the number, expiration date and the last 3 or 4 #'s of the security code from the back of the card BUT that adds 3.5% to the final bill. I'd prefer to avoid this method but it is an option. All of the added fees are exactly what either service charges me for taking your credit card.
